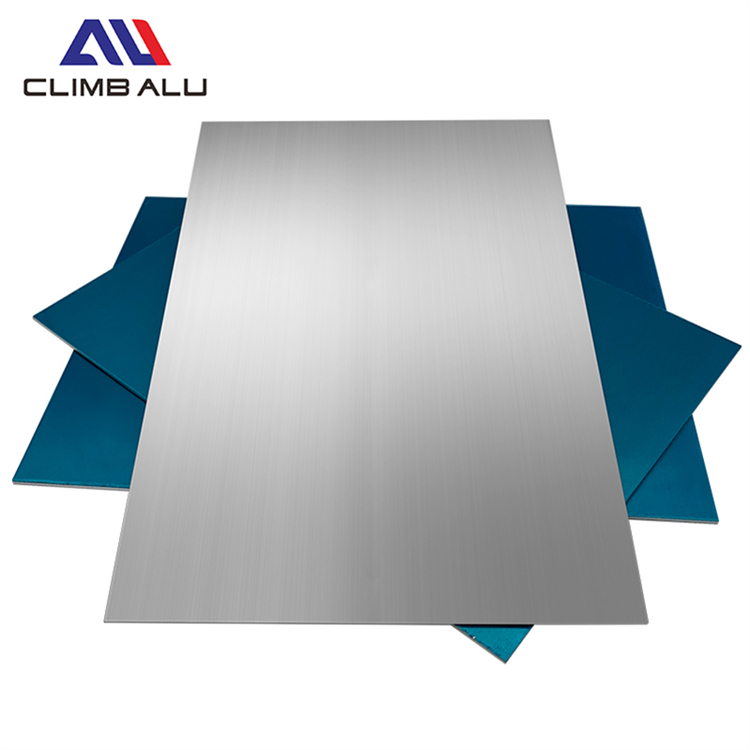

5052 Aluminum Sheet

h32 aluminum alloy is a high-strength, non-heat-treatable metal material, which contains magnesium as its added character element. However, aluminum 5052-h32 also contains small amounts of chromium, silicon, iron, copper, manganese, and zinc to add additional strength to the aluminum base product. This corrosion-resistant product also provides excellent weldability and cold-working capabilities, which makes it suitable for numerous applications.


⑴forming property
①The alloy thermal process has good plasticity. The forging and die forging temperatures are 420 to 475 C for 80% thermal deformation in this temperature range.
②Its cold stamping performance is related to the alloy temper. And the cold stamping performance of the annealing (O) temper is good followed by H32 and H34 state. While H36 / H38 temper is bad.
⑵welding performance
①The gas welding, arc welding, resistance welding, spot welding, and seam welding of this alloy are good, and the crystal crack tendency appears two argon arc welding. Braze performance is still good, while soft brazing performance is poor.
②welds have high strength and plasticity, with weld strength reaching 90%~95% of the matrix metal strength. However, the gas tightness of the weld is not high. The 5A03 alloy is recommended as the solder, which can improve its gas tightness and eliminate the crack tendency.
⑶machining property
The cutting performance of the alloy is poor, while the cold hardening temper improves its cutting performance.

Products Specifications:

Product Name: 5052 Aluminum sheet
Main ingredients:Aluminum and magnesium
Tempers: h32/O/h38/h34/h24/h22/h111/h112/h114
Thickness: 0.2mm-300mm
Width: 7-2250
Length: 16000mm
Type: Plain Plate

Applications and After-Sale Service:

5052 aluminum sheets I often used in vehicles, ships of sheet metal parts, meters, street lamp supports and rivets, hardware products, electrical housing, etc. It can also be used to make aircraft fuel tanks, oil tubes, and aerospace aluminum alloy materials.
(1)Professional sales and documentation team tracks the whole process.
(2)We have many perennial cooperation customers while ensuring product quality, We can do timely delivery, timely arrival communication.
