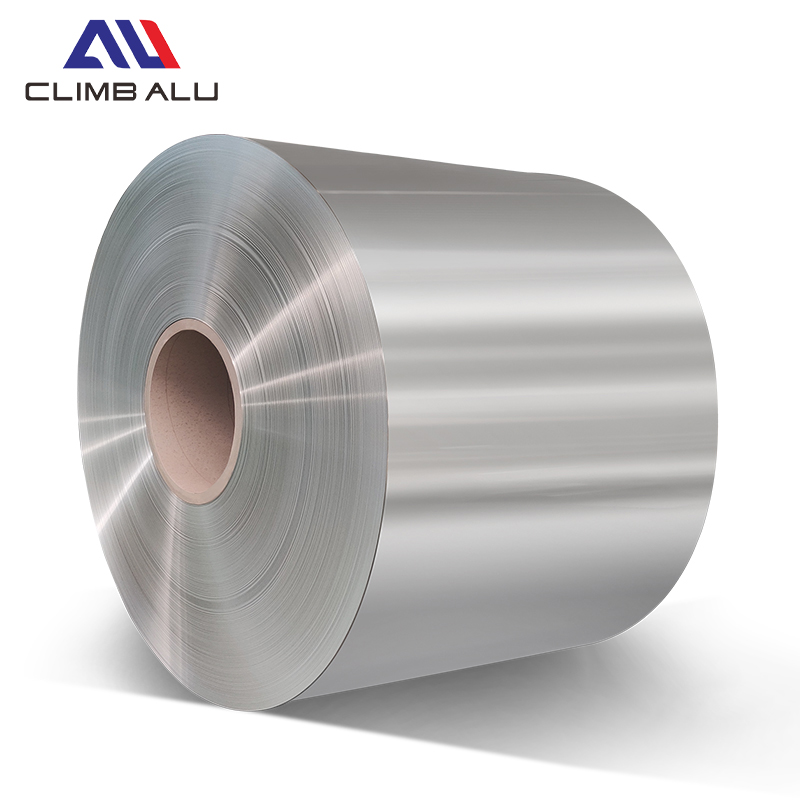

5052 Aluminum Coil

The 5052 aluminum coil is an aluminum alloy, which is made up of 2.5 percent magnesium and 0.25 percent chromium except for aluminum. It’s considered to have great workability and weldability. It has medium static and high fatigue strength. The corrosion resistance of this aluminum alloy is very good, especially in marine environments. This aluminum alloy has excellent thermal conductivity and low density, same with other 5000 series aluminum alloy coil roll. To harden aluminum 5052, you can use cold working. It is not applicable for you to adopt the heat treatment to obtain higher alloy strength.


1. The surface is smooth, and there is no cracks, corrosion spots, and traces of nitrate;
2. It has high fatigue resistance, good plasticity, and corrosion resistance;
3. 5052 aluminum coil has good weldability but poor machinability and polishing performance;
4. 5052 aluminum coil elongation can reach 12-20%.

Products Specifications:

Product Name: 5052 Aluminum Coil
Main ingredients:Aluminum and magnesium
Tempers: h32/O/h38/h34/h24/h22/h111/h112/h114
Thickness: 0.1mm-6mm
Width: 7-2250
Type: Coil

Applications and After-Sale Service:

5052 Aluminum Coil has good workability and high fatigue strength with good resistance to correction even in saltwater. Besides, it can be anodized to improve the correction resistance of the material in a corrosive environment. Thus, the 5052 aluminum coil is suitable for marine applications. For the characteristics above, 5052 aluminum coil can be applied to bodies of boats, buses, trucks, and trailers, as well as for chemical drums. And it is also vastly used in electronic casings, such as notebook computers and televisions. It has high quality and value. 5052 aluminum coil is also environmentally friendly because aluminum is infinitely recyclable.
(1)Professional sales and documentation team tracks the whole process.
(2)We have many perennial cooperation customers while ensuring product quality, We can do timely delivery, timely arrival communication.
