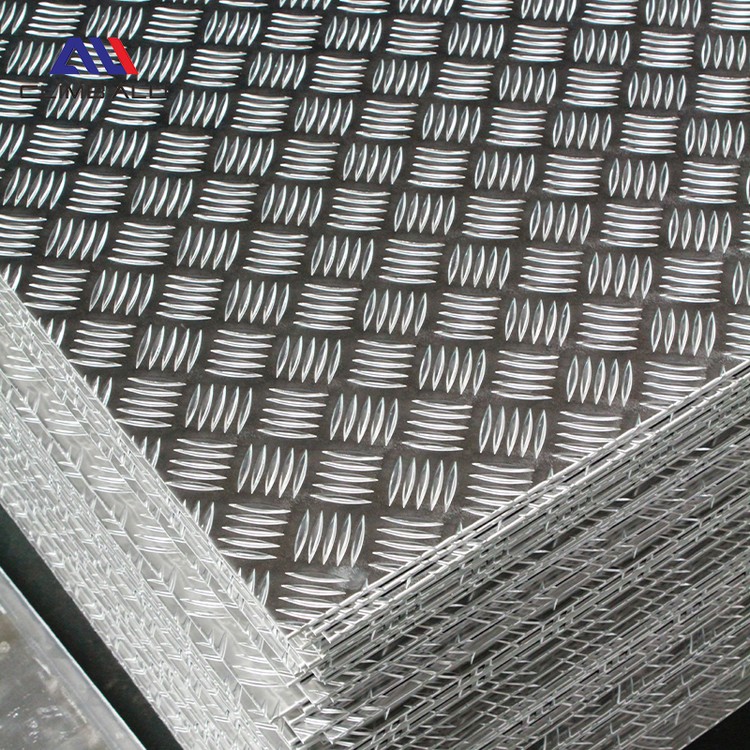

1 Series 5 Bar Aluminium Checker Plate

As we all know, aluminum checker plate belongs to the non-slip aluminum sheet series. Among all the aluminum checker plates, the 5 bar aluminum checker plate is the most anti-slip one. The surface is covered with five parallel uneven patterns. According to the data, the included angle between two five patterns is 60°-80°, and each stripe is 30mm or 40m long, which means that the contact between the object and the 5 bar aluminum checker plate will produce strong friction resistance.


During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. Doing that, the bottom of the plate remains plain.
Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

Products Specifications:

Product Name: 1 Series Aluminum Checker Plate
Aluminum Alloy Number: 1050/1060/1100
Main ingredients:Aluminum
Tempers: h114
Thickness: 1.5mm-6.35mm
Width: 7-2250mm
Length: 16000mm
Type: Plate or coil

Applications and After-Sale Service:

5 bar aluminum tread plate is more anti-skid and economical than diamond and stucco embossed aluminum tread plate, so it has a wide range of applications, covering construction structure, mechanical equipment manufacturing, transportation vehicles and other fields. Therefore, the huge demand is promoted by 5 bar aluminum tread plate suppliers.
(1)Professional sales and documentation team track the whole process.
(2)We have many perennial cooperation customers, while ensuring product quality, We can do timely delivery, timely arrival communication.
